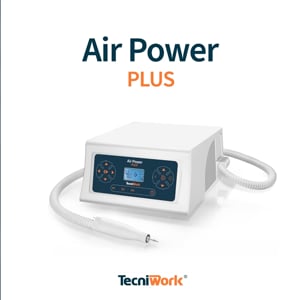

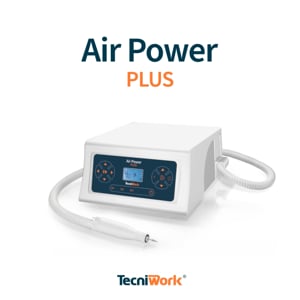

Tecniwork Air Power Plus micromotor with brushless suction, practical and efficient, with adjustable speed from 4,000 to 30,000 rpm. Handpiece with coaxial suction, light and handy, with start/stop switch and automatic pressure clamp for bur change. Up to 3 speed/suction memories can be set. Suction system with internal charcoal filter for increased guarantee of clean air re-entry into the working environment.
Handpiece overload protection: the motor stops for approximately 5 seconds if subjected to excessive overload; the electronic overload protection interrupts the current flow and both the micromotor and the suction turbine stop.
Suction turbine temperature protection fuse: if the air temperature in the suction turbine exceeds 70°C, the turbine and handpiece switch off and the overheating symbol appears on the display.
Functional features:
Suction with brushless motor
Suction power adjustment
Start/stop switch on handpiece
Handpiece with automatic clamp
Possibility of storing 3 speeds and 3 suction intensities
Reversal of cutter rotation direction
Digital display with information on operation and maintenance
Soft-Touch controls
Variable speed pedal (optional)
Start/stop pedal (optional)
Technical characteristics:
Adjustable speed from 4,000 to 30,000 rpm
Power supply voltage: 100 - 230V / 50 Hz - 60 Hz
Max. power consumption: 120 Watts
Dimensions:
Unit dimensions: W 25 x H 12.8 x D 29 cm
Handpiece dimensions: Length 14.2 cm
Handpiece diameter: 1.7 - 2.4 - 2.8 cm
Handpiece weight: 100 g
Central unit weight: approx. 2.8 kg
Standard accessories:
Handpiece holder 1 pc
Clamp cleaning tool 1 pc
Optional:
Ref.AF950P Variable speed pedal
Ref.AF952P Start/stop pedal
Ref.AF952S Disposable micro-filtering TNT bag 1 pc
Ref.AF952SC Disposable paper bag 1 pc
Only use cutters with a shaft diameter of 2.35 mm and length of min. 35 mm
Never use cutters that are non-concentric, out of alignment or damaged.
It is recommended to use cutters with a maximum head diameter of Ø 10 mm and a minimum shaft length of 35 mm.
